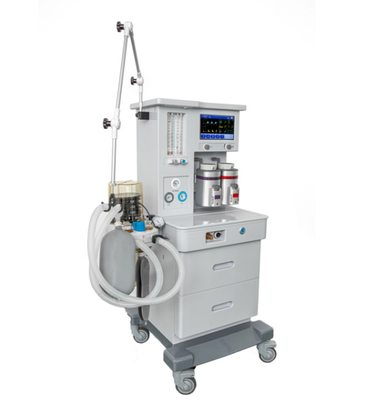

آلة التخدير عالية الأداء معدات المختبرات الطبية للاختبار السريع والدقيق

ADVANCED DESIGN & MONITORING

Large screen high-definition TFT wide viewing angle color LCD touch screen

New interface design, reasonable layout and color matching

Pressure-Time waveform, Flow-Time waveform display on the same screen

Powerful monitoring and alarm functions

Comprehensive respiratory mechanics monitoring allows you to fully grasp the patient's respiratory status

HIGH-PRECISION VAPORIZER

Vaporizer can support low flow anesthesia (as low as 0.2L/min and large flow anesthesia (up to 15L/min).

Accurate output of concentrations under varying conditions of pressure, flow and temperature.

4 Kinds of Vaporizer for Choice: Halothane, Enflurane, Isoflurane and Sevoflurane

Fill-in type: Pouring

INTEGRATED BREATHING CIRCUIT

Integrated breathing circuit with APL valve, excellent tightness and safety.

Made of special materials, resistant to corrosion and high temperature.

Compact structure, no external pipelines, good mechanical compliance.

Impeller sampling is used at the exhalation end to avoid inaccurate monitoring of tidal volume due to water vapor condensation.

Drive bellows is not required to repalce when operating pediatric anesthesia.

Large volume of CO₂ canister, single tank structure for more convenient in assembly.

ACGO PORT

With ACGO port to connect with T circuit or BAIN circuit for open-operation.

Convenient for patients’oxygen inhalation and post-operative recovery.

AGSS PORT

AGSS exhaust gas collection system can be installed.

Reduce environmental pollution in the operating room Ensure the safety of medical staff and patients.
